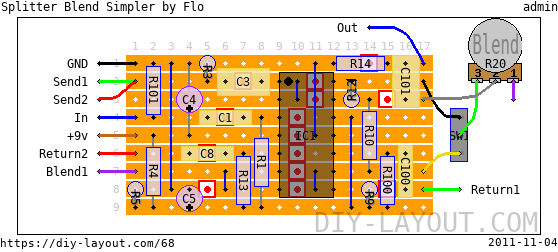

Splitter Blend Simpler by Flo

Project description

Original by Run Of Groove, simplified by Flo.

Unverified until I say so!

Bill of materials

Resistors
R1: 1M
R3: 1M
R4: 33K
R5: 33K
R9: 1M
R10: 220K
R12: 220K
R13: 1M
R14: 1M
R100: 1M
R101: 1M

Potentiometers
R20: 25K Linear (B)

Switches
SW1

Capacitors
C1: 220nF
C3: 1μF
C8: 220nF
C100: 220nF
C101: 1μF

Electrolytes
C4: 47μF
C5: 22μF

DIL IC's
IC1: TL074

6 jumper wires

14 trace cuts

List

Click here to see the bill-of-materials as a list or download it as a comma separated values file (.csv).

Code

BB Forum code

[url=https://diy-layout.com/68][img]https://diy-layout.com/diyl/68/render[/img]
Splitter Blend Simpler by Flo[/url]

HTML code

<a href="https://diy-layout.com/68"><img src="https://diy-layout.com/diyl/68/render" alt="Splitter Blend Simpler by Flo" title="Splitter Blend Simpler by Flo" /><br />
Splitter Blend Simpler by Flo</a>

Comments

Thanks! :)

Submitted on January 3rd, 2012 by Anonymous

Hi!

Thank you for sharing this vero layout, could you have a chance to verify it yet?

Cheers,
Michael

Michael,

Submitted on January 3rd, 2012 by admin

I built and thus verified it already, I just have to find some time to add a project description here ;)

Thanx for the reminder!
