LED Dimmer
Posted Sat, 2014-01-25 15:47 by admin

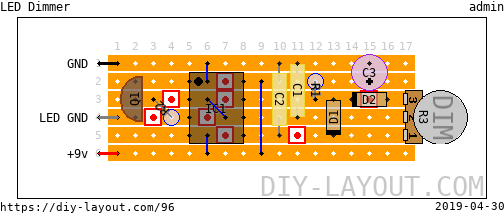

Project description
Bill of materials
| Resistors | |
|---|---|
| R1: 1K | |
| R2: 1K | |
| Potentiometers | |
|---|---|
| R3: 50K Log (A) | |
| Capacitors | |
|---|---|
| C1: 10nF | |
| C2: 10nF | |
| Electrolytes | |
|---|---|
| C3: 470μF | |
| DIL IC's | |
|---|---|
| IC1: 555 | |
| Diodes | |
|---|---|
| D1: 1N34A | |
| D2: 1N34A | |
| Transistors | |
|---|---|
| Q1: BC547 | |
| 4 jumper wires |
| 8 trace cuts |
List
Click here to see the bill-of-materials as a list or download it as a comma separated values file (.csv).
