Catalinbread Sagrado Poblano Picoso
Posted Thu, 2013-01-31 20:54 by admin

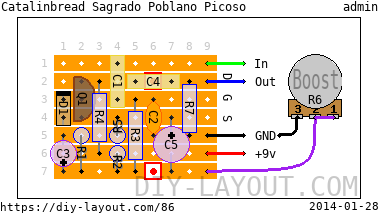

Project description
Bass version of the Catalinbread Chili Picoso, aka "AMZ Booster".
Bill of materials
| Resistors | |
|---|---|
| R1: 100K | |
| R2: 62K | |
| R3: 10M | |
| R4: 2.7K | |
| R5: 2.7K | |
| R7: 1M | |
| Potentiometers | |
|---|---|
| R6: 5K Linear (B) | |
| Capacitors | |
|---|---|
| C1: 10nF | |
| C2: 47pF | |
| C4: 220nF | |
| Electrolytes | |
|---|---|
| C3: 10μF | |
| C5: 470μF | |
| Diodes | |
|---|---|
| D1: 9.1v Zener | |
| Transistors | |
|---|---|
| Q1: BS170 | |
| 2 trace cuts |
List
Click here to see the bill-of-materials as a list or download it as a comma separated values file (.csv).
