Muffer (Jack Orman)
Posted Wed, 2009-12-23 23:08 by Harold

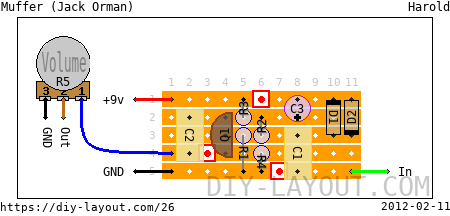

Project description
This is a modified section of a Big Muff and can be used to boost as much as 30dB. If you just want a clean booster you may omit the 2 clipping diodes.
A full description can be found at muzique.com.
Bill of materials
| Resistors | |
|---|---|
| R1: 100K | |
| R2: 470K | |
| R3: 10K | |
| R4: 150R | |
| Potentiometers | |
|---|---|
| R5: 100K Log (A) | |
| Capacitors | |
|---|---|
| C1: 1μF | |
| C2: 1μF | |
| Electrolytes | |
|---|---|
| C3: 10μF | |
| Diodes | |
|---|---|
| D1: 1N914 | |
| D2: 1N914 | |
| Transistors | |
|---|---|
| Q1: 2N5088 | |
| 3 trace cuts |
List
Click here to see the bill-of-materials as a list or download it as a comma separated values file (.csv).
Code
BB Forum code
HTML code
Comments
Great stuff...
Submitted on May 12th, 2013 by AnonymousMy 2nd build...and I love it. Fabulous gain and a great bit of grunt. Easy job as well. My first build was an ebay FF kit and I thought that was relatively easy but the Muffer was a breeze. Highly recommended build for a newbie......like me.
I come back here time and time again and it feels that everytime I do I gain a little bit more knowledge.
Many many thanx
My second build
Submitted on April 16th, 2013 by AnonymousJust a quickie to say a big thanx for this web site.
Just completed the Muffer and it worked first time. I even wired in a stomp switch ('cos I had one laying about.
This was my 2nd build and it was pretty easy to complete, even for a newbie like me.
My next build....the flatline compresser. . . . .
Thanx again
Dean
ERROR
Submitted on February 5th, 2012 by AnonymousC2 ??????????
Ahum...
Submitted on February 11th, 2012 by adminFixed! ;)
The blue wire was wired wrong. Thanks for spotting it!
Adding Millenium 1 bypass
Submitted on October 13th, 2011 by AnonymousCan anyone provide a layout showing the addition of the Millenium bypass 1 plus (DPDT)?
I've tried but it only works with the power jack (sounds awesome) and not the battery. Also, the LED won't turn off when I switch but Bypass works... How does the volume pot connect?
