Apollo treble bass booster

Apollo treble bass booster

Project description

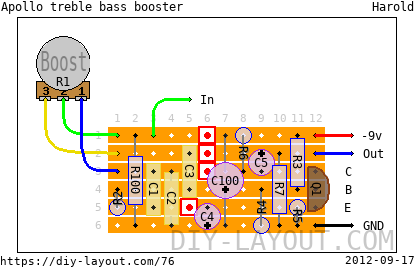

Unverified layout #435.

Brave builders: this is a positive ground effect! Use with either a battery, isolated power supply, or a voltage inverter (recommended!).

Bill of materials

Resistors
R2: 30K
R3: 150K
R4: 10K
R5: 1K
R6: 10K
R7: 500K
R100: 1M
Potentiometers
R1: 500K Linear (B)
Capacitors
C1: 220nF
C2: 220nF
C3: 1.8nF
Electrolytes
C4: 30μF
C5: 5μF
C100: 100μF
Transistors
Q1: 2SB175
4 trace cuts

List

Click here to see the bill-of-materials as a list or download it as a comma separated values file (.csv).
