Project description

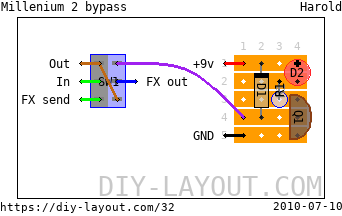

Again: an unverified layout! ;) This time of a millenium bypass.

Bill of materials

Resistors
R1: 4.7K
Switches
SW1
Diodes
D1: 1n4148
LEDs
D2: 5mm
Transistors
Q1: BS170

List

Click here to see the bill-of-materials as a list or download it as a comma separated values file (.csv).

Code

BB Forum code
HTML code

Comments

It works!

I tested this circuit. Works great! Thanks!
